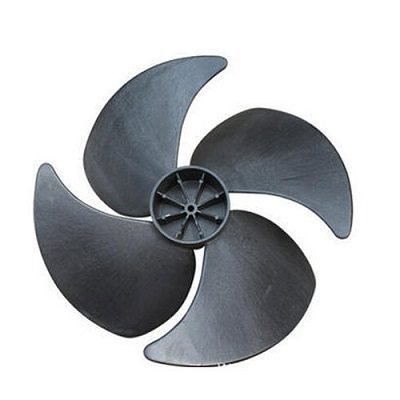

AC Blade

The Engineering of Cool: Understanding AC Fan Blades for the Indian Climate

As temperatures soar across India, from the dry heat of Rajasthan to the humid coastal regions of Kerala, the air conditioner becomes a lifeline. While most discussions center on the compressor or refrigerant gas, the AC Blade (or fan blade) is the critical component that facilitates the actual exchange of heat. Without a precisely engineered blade, even the most advanced AC unit in Mumbai or Delhi would fail to provide cooling. Understanding the types and specifications of these blades is essential for maintaining energy efficiency and system longevity. We also deal in other home appliance spare parts like Chimneys, Hobs, RO systems, ACs, Fridges, Washing Machines, Microwaves, Dishwashers, Geysers, Coolers etc.

The Role of Fan Blades in AC Systems

Air conditioners rely on two distinct types of air movement: heat dissipation and cold air distribution. In India, where ambient outdoor temperatures can exceed 45°C, the efficiency with which a fan blade moves air across the condenser coils determines how hard the compressor has to work. A well-designed blade ensures that heat is expelled rapidly, reducing electricity consumption and preventing the system from tripping during the peak summer months of May and June.

Technical Specifications for the Indian Market

When choosing a replacement blade or evaluating an AC unit in India, several technical parameters must be considered to ensure compatibility with local power and environmental conditions:

• Diameter (Sweep): This is the distance from one blade tip to the opposite tip. Standard outdoor unit blades in India typically range from 14 inches to 22 inches. A larger diameter moves more air but requires a more powerful motor.

• Pitch (Blade Angle): The pitch is the angle at which the blade is set. A higher pitch "bites" more air, increasing the Cubic Feet per Minute (CFM) of airflow. However, in cities like Chennai, a higher pitch can also increase noise levels.

• Bore Size: This is the diameter of the center hole that fits onto the motor shaft. In the Indian market, common bore sizes are 8mm, 10mm, or 12mm. An exact match is vital to prevent vibration.

• Rotation (CW/CCW): Blades are designed to spin either Clockwise or Counter-Clockwise. Installing the wrong rotation type will result in the AC "sucking" air instead of blowing it, leading to zero cooling.

• Number of Leaves: Most residential ACs in India use 3-leaf or 4-leaf designs. 3-leaf blades are often preferred for higher air velocity, while 4-leaf designs are quieter.

Types of AC Blades Found in India

Depending on whether it is a Window AC or a Split AC, the blade design varies significantly:

1. Axial Fan Blades (Outdoor Units)

These are used in the outdoor condenser units of split ACs across India. Usually made of heavy-duty plastic or aluminum, they are shaped like propellers. Their job is to pull ambient air through the hot condenser coils and blow it out into the open.

2. Blower/Centrifugal Fans (Indoor Units)

Located inside the indoor unit of a split AC or the front section of a window AC, these look like "squirrel cages." They are designed to create high static pressure, forcing the cooled air through the cooling fins and out into your room in Bengaluru or Hyderabad.

3. Propeller Blades (Window AC)

In window units popular in older buildings in Kolkata, a single motor often has a double-ended shaft. One end holds a propeller blade for the condenser (outdoor side) and the other holds a blower for the evaporator (indoor side).

Impact of Quality on Energy Bills

In India, "dust and soot" are major challenges. Over time, dust accumulates on the blades, altering their weight and balance. An unbalanced blade causes the motor to draw more current, leading to higher electricity bills. Furthermore, a bent or chipped blade can cause the entire outdoor unit to vibrate, potentially leading to refrigerant leaks at the copper pipe joints.

Frequently Asked Questions (FAQ)

Which material is better for AC blades in India: Plastic or Metal? Most modern ACs in India use high-grade UV-resistant plastic (like ABS). It is rust-proof, which is a major advantage in humid cities like Chennai. Metal blades are more durable but can corrode if the paint chips off.

Can I replace a 3-blade fan with a 4-blade fan in my outdoor unit? It is not recommended. The motor's RPM and torque are calibrated for a specific blade weight and pitch. Changing the blade type can overload the motor and lead to a burnout during a heatwave in North India.

Why is my outdoor AC unit making a loud "thumping" noise? In many India households, this is caused by a loose "hub screw" or a blade that has become slightly warped due to extreme heat. It can also happen if a bird or debris hits the blade while it is spinning.

How do I find the correct replacement blade for my AC in India? The most reliable way is to provide the brand name (e.g., Voltas, Blue Star, Daikin) and the model number to a technician. You should also verify the Bore Size and the Rotation (CW or CCW).

Do AC blades require regular maintenance? Yes. During your pre-summer AC service in India, ensure the technician cleans the blades. Removing accumulated dust improves airflow and reduces the strain on the motor and compressor.
