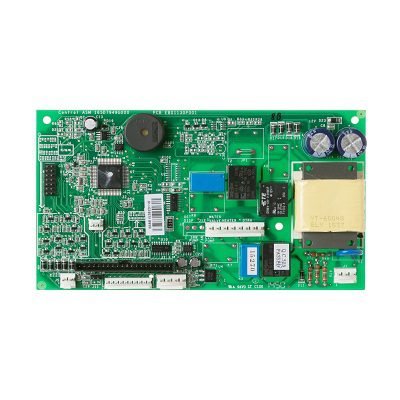

Dishwasher PCB

The Digital Brain: A Comprehensive Guide to Dishwasher PCBs in India

In the modern culinary landscape of India, the dishwasher has transitioned from a niche luxury to a vital kitchen assistant. While the pump and spray arms do the physical work, the Dishwasher PCB (Printed Circuit Board) is the undisputed brain of the operation. Whether you are running an "Intensive" cycle to remove stubborn grease from a "kadhai" in Mumbai or a "Gentle" wash for glassware in Delhi, the PCB coordinates every move. In urban centers like Bengaluru, Noida, and Pune, where smart appliances are the standard, the PCB ensures that your Bosch, LG, or IFB unit operates with mathematical precision and energy efficiency. We also deal in other home appliance spare parts like Chimneys, Hobs, RO systems, ACs, Fridges, Washing Machines, Microwaves, Dishwashers, Geysers, Coolers etc.

The Engineering Logic: Orchestrating the Clean

The primary function of a dishwasher PCB is to execute the complex logic of a wash cycle. In a typical household in Hyderabad or Kolkata, the PCB receives data from various sensors—measuring water temperature, turbidity (cloudiness), and door position. Based on this input, it sends electrical commands to the water inlet valve, the heating element, and the circulation pump. This is especially critical in India, where the PCB must manage the "Hot Wash" cycles required to melt "ghee" and oils. By regulating the exact timing of each stage, the board ensures that no water or electricity is wasted in your Chennai or Gurugram apartment.

Key Technical Specifications for the Indian Market

To survive the electrical fluctuations and high-humidity environments common in India, dishwasher PCBs are engineered to rigorous standards:

• Microcontroller Architecture: Usually features 8-bit or 32-bit processors capable of handling multiple sensor inputs simultaneously.

• Operating Voltage: Designed for the Indian grid standard of 230V AC, 50Hz, though internal logic usually runs on 5V or 12V DC.

• Coating: High-quality boards in Mumbai and Delhi are often "Conformally Coated" with a thin layer of resin to protect against moisture, steam, and "cockroach" infestations.

• Relay Capacity: Heavy-duty relays rated for 10A to 16A to manage the high current draw of the internal water heater.

• Memory Function: Integrated non-volatile memory that allows the machine to "Auto-Resume" after the frequent power cuts experienced in Noida, Pune, and Kolkata.

• Safety Logic: Includes "Watchdog Timers" that automatically shut down the machine if it detects a leak or an overheating motor in your Hyderabad kitchen.

Types of Dishwasher PCBs Found in India

1. Main Control Power Boards

The "Master Board" located at the base or side of the machine in most Indian models. This board handles the high-voltage tasks, such as powering the motor and the heating element in Mumbai and Delhi.

2. User Interface (UI) / Display Boards

The board located directly behind the buttons or touch panel in Bengaluru and Noida. It translates your finger presses into digital signals and manages the LED or LCD display that shows the remaining time.

3. Integrated (Single-Board) Systems

Common in compact or "Solo" dishwashers in Chennai and Pune. All functions—from power management to the display—are housed on one single board to save space.

4. Smart/Wi-Fi Enabled PCBs

Found in ultra-premium models in Gurugram and Mumbai. These boards feature a wireless module, allowing you to control the dishwasher via a smartphone app and receive remote diagnostics in your Hyderabad home.

Maintenance and Troubleshooting in Indian Conditions

In India, the biggest threats to a dishwasher PCB are Voltage Surges and Moisture Seepage. In cities like Delhi, Kolkata, and Patna, a sudden spike in the power line can "fry" the capacitors or the microcontroller.

Pro-Tip: If your dishwasher is showing random error codes or refusing to start in your Noida or Bengaluru home, the PCB might be the culprit. In India, it is highly recommended to use a Voltage Stabilizer specifically for your dishwasher to protect the PCB. For those in Mumbai or Chennai, ensure your kitchen is well-ventilated; if excessive steam enters the control panel, it can lead to corrosion on the PCB tracks. If the machine is dead, check the "On-Board Fuse" before assuming the entire PCB needs replacement in your Pune or Hyderabad household.

Frequently Asked Questions (FAQ)

Can a faulty PCB be repaired or must it be replaced? In India, many local technicians in Mumbai or Delhi can repair minor issues like burnt capacitors. However, if the main microcontroller is damaged, a full replacement is usually necessary for your Bengaluru appliance.

Why did my dishwasher PCB burn out during the monsoon? In cities like Mumbai or Kolkata, high humidity can cause "tracking" or short circuits on the board. Moisture combined with dust creates a conductive path that leads to failure.

Are PCBs universal across different brands? Absolutely not. A PCB for a Samsung dishwasher is not compatible with a Bosch or LG model in Chennai or Noida. They are programmed with model-specific logic.

How do I know if the PCB is the problem and not a sensor? If the dishwasher in your Hyderabad home performs weirdly—like filling and draining at the same time—it is likely a PCB logic error. If it just shows one specific code, it is likely a sensor.

Where can I buy a replacement PCB in India? Authorized service centers are the only reliable source for programmed boards. For physical components like relays, check Lamington Road in Mumbai or Chandni Chowk in Delhi.
