Washing Machine Drain Motor

The Gatekeeper of Drainage: A Comprehensive Guide to Washing Machine Drain Motors in India

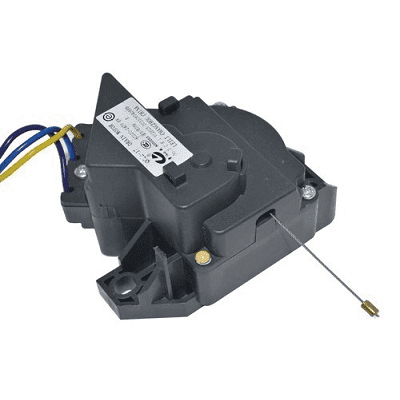

In the automated rhythm of a modern Indian household, the transition from the wash cycle to the spin cycle is managed by a small but powerful actuator: the Washing Machine Drain Motor. While the main motor turns the drum, the drain motor (often called a retraction motor or drain actuator) is the component that physically opens the valve to let dirty water out. In cities like Mumbai, Bengaluru, and Delhi, where fully automatic top-load machines are the standard, this part is essential for a seamless laundry experience. Without a functional drain motor, your machine would remain stuck in a loop, unable to rid itself of soapy water or begin the drying process. We also deal in other home appliance spare parts like Chimneys, Hobs, RO systems, ACs, Fridges, Washing Machines, Microwaves, Dishwashers, Geysers, Coolers etc.

The Mechanical Logic of the Drain Actuator

The primary function of a washing machine drain motor is to convert electrical energy into a pulling force. In a typical top-load machine in Chennai or Hyderabad, the drain motor is connected to a sturdy nylon string or a metal link. When the PCB (electronic brain) signals that the wash is over, the drain motor engages, pulling the string to open the internal rubber bellows of the drain valve. Simultaneously, in many India-spec models, this motor also shifts the gearbox from "Wash Mode" to "Spin Mode," allowing the drum to rotate at high speeds. This dual-action makes the drain motor a cornerstone of mechanical efficiency in your Noida or Pune home.

Key Technical Specifications for the Indian Market

To survive the high humidity and varying electrical loads of India, drain motors from brands like LG, Samsung, Whirlpool, and Panasonic follow these core specifications:

• Operating Voltage: Standardized for the Indian grid at 220V to 240V AC.

• Pulling Force: Typically rated between 60N to 100N (Newtons) to ensure it can overcome the water pressure inside the tub.

• Stroke Length: Usually measured in millimeters (e.g., 20mm to 35mm), defining how far the motor pulls the valve string.

• Material Composition:

  • External Housing: High-impact, flame-retardant ABS plastic to ensure safety in Mumbai or Kolkata laundry areas.

  • Internal Gears: Precision-engineered nylon or metal gears designed for thousands of cycles.

• Connector Type: Features a 2-pin or 3-pin terminal to receive commands from the machine's control board.

• Duty Cycle: Rated for intermittent use, specifically designed to stay in the "pulled" position during the entire spin cycle without overheating in the Delhi summer.

Types of Washing Machine Drain Motors Found in India

1. Two-Wire Drain Motors

The most common type found in budget and mid-range top-load machines across India. These are simple "On/Off" actuators. When power is supplied, they pull the valve open; when power is cut, an internal spring returns the valve to the closed position.

2. Three-Wire (Position-Sensing) Motors

Found in premium fully automatic machines in cities like Bengaluru and Mumbai. The third wire provides feedback to the PCB, confirming that the motor has successfully reached the "Open" or "Closed" position. This prevents "Drain Errors" in your Noida or Gurugram apartment.

3. Synchronous Drain Motors

These use a small synchronous motor and a gear reduction system to provide a slow, steady pull. They are exceptionally reliable and are used by many top brands in Chennai and Pune for their long-lasting performance.

4. Solenoid-Type Actuators

Found in some older models in Kolkata or Hyderabad. Instead of a rotating motor, they use an electromagnetic coil to snap the valve open instantly. While fast, they are often noisier than the modern motor-based versions.

Maintenance and Troubleshooting in Indian Conditions

In India, the biggest enemies of the drain motor are Rodents and Voltage Fluctuations. In independent houses in Delhi or Chennai, rats often chew through the thin nylon pulling string or the electrical wires. Furthermore, in areas with unstable power like Kolkata, a voltage spike can burn out the motor's internal coils.

Pro-Tip: If your washing machine is not draining water and you hear a "buzzing" or "clicking" sound from the bottom in your Mumbai or Bengaluru home, the drain motor is likely trying to engage but is stuck. Check if a coin or a small stone is jammed in the valve assembly. If the motor is dead, the machine will likely show an "OE" or "5C" error code. In India, it is always recommended to replace the motor with a genuine part that matches the stroke length and pulling force of the original to ensure the gearbox shifts correctly during the spin cycle in your Pune or Noida home.

Frequently Asked Questions (FAQ)

Why is my machine not spinning even though it drained the water? In many India top-load machines, the drain motor is responsible for "shifting" the gearbox. If the motor is weak, it might open the valve but fail to engage the spin gear in your Delhi or Mumbai laundry area.

Can I manually pull the drain motor string to empty the water? Yes, in an emergency in your Bengaluru or Chennai home, you can reach under the machine (unplug it first!) and gently pull the drain motor link to release the water. This is helpful if the motor fails while the tub is full.

Are drain motors universal for all brands? No. Drain motors in India are highly specific. The mounting holes, the length of the pull-string, and the electrical connector vary significantly between LG, Samsung, and Whirlpool models.

What is the life expectancy of a drain motor in India? A high-quality drain motor typically lasts 5 to 7 years. However, frequent overloading or poor electrical grounding in Mumbai or Noida can shorten this lifespan.

Where can I buy a replacement drain motor in India? You can find them at authorized service centers or specialized spare parts markets like Lamington Road in Mumbai, Chandni Chowk in Delhi, and Lohar Chawl.

Would you like me to help you identify the correct drain motor part number for your specific machine model or provide a guide on how to test the motor using a multimeter in your India home?
