Washing Machine PCB

The Digital Brain: A Comprehensive Guide to Washing Machine PCBs in India

In the modern Indian household, the transition from manual labor to automated convenience is managed by one critical component: the Washing Machine PCB (Printed Circuit Board). Acting as the "brain" of the appliance, the PCB governs every operation, from the initial water intake in Mumbai to the final high-speed spin in Delhi. In an era where smart homes are becoming the standard in cities like Bengaluru and Hyderabad, the PCB is the most sophisticated and vital part of your washing machine, determining its intelligence, efficiency, and longevity. We also deal in other home appliance spare parts like Chimneys, Hobs, RO systems, ACs, Fridges, Washing Machines, Microwaves, Dishwashers, Geysers, Coolers etc.

The Role of the PCB in Automated Laundry Care

The primary function of a washing machine PCB is to execute the program logic selected by the user. When you press a button on your machine in Noida or Pune, the PCB receives that signal and sends electrical commands to various components. It tells the water inlet valve when to open, instructs the motor on how fast to spin, and monitors sensors to ensure the machine doesn't overheat or overflow. In high-end models found in Gurugram, the PCB also manages Wi-Fi connectivity and "AI Wash" features, which analyze fabric type and soil level to customize the wash cycle.

Key Technical Specifications for the Indian Market

To withstand the unique challenges of the India power grid—such as voltage fluctuations and high humidity—PCBs from brands like LG, Samsung, IFB, and Whirlpool follow these specifications:

• Operating Voltage: Designed to function within 220V to 240V AC. Most modern Indian PCBs feature a built-in SMPS (Switch Mode Power Supply) to handle minor voltage dips.

• Coating (Conformal Coating): High-quality PCBs in Mumbai and Chennai are coated with a layer of silicone or epoxy resin. This protects the delicate circuits from moisture, salt air, and corrosion.

• Microcontroller Architecture: Typically uses 8-bit or 32-bit processors to manage complex wash algorithms and sensor feedback loops.

• Relay and Triac Ratings: Engineered to switch currents ranging from 5A to 16A, depending on whether they are controlling the water pump or the heavy-duty heater.

• Thermal Protection: Equipped with heat sinks and thermal fuses to prevent the board from melting during long "Steam Wash" cycles in Delhi.

Types of Washing Machine PCBs Found in India

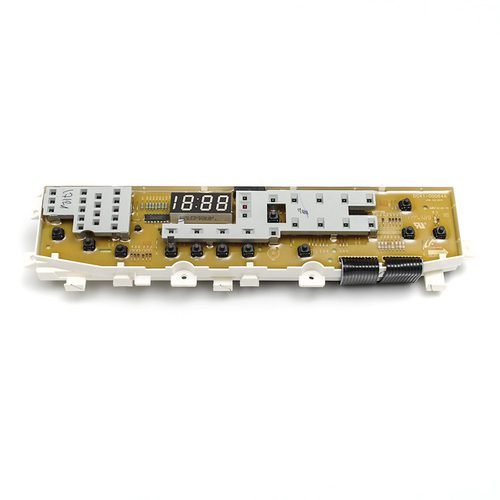

1. Display/User Interface (UI) PCB

This is the board located directly behind the buttons and knobs. In modern machines in Bengaluru and Mumbai, this PCB manages the LED/LCD display and registers your touch commands.

2. Main Power PCB

Located deep inside the machine's cabinet to stay dry. This board handles the high-voltage power distribution to the motor, heater, and drain pump. It is the most robust board in the system.

3. Inverter Drive PCB

Found in "Inverter" models popular in Noida and Hyderabad. This specialized board converts AC power to DC and varies the frequency to control motor speed with extreme precision, saving significant electricity.

4. Integrated (Single Board) PCB

Common in semi-automatic and basic top-load machines across India. A single board handles both the user interface and the power distribution, making it easier and more cost-effective to replace in cities like Kolkata or Ahmedabad.

Maintenance and Troubleshooting in Indian Conditions

In India, the biggest enemies of the washing machine PCB are Voltage Spikes and Pests. In cities like Delhi, Patna, or Chennai, sudden surges in the electrical line can fry the capacitors on the board. Furthermore, small cockroaches or lizards often enter the machine in Mumbai or Bengaluru households, crawling onto the PCB and causing a short circuit.

Pro-Tip: Always use a dedicated Washing Machine Stabilizer to protect the PCB from voltage fluctuations. If your machine is completely dead or displaying random error codes in your Noida or Pune home, it is often a sign of PCB failure. To prevent pest damage, place camphor balls or pest-repellent gels near the back of the machine. If the board is damaged by moisture in a coastal city like Kochi, a professional technician can sometimes "repair" it by replacing individual capacitors, but a full replacement is usually the most reliable long-term fix.

Frequently Asked Questions (FAQ)

What are the signs of a failing washing machine PCB? Common signs in India include the machine not starting, random error codes (like "PE" or "DE"), the drum spinning in only one direction, or the display panel flickering in your Delhi or Mumbai home.

Can a PCB be repaired after a short circuit? In many cases, yes. Local technicians in Lamington Road (Mumbai) or Chandni Chowk (Delhi) can replace burnt components. However, for Inverter PCBs, a factory replacement is often necessary to ensure the machine's efficiency.

Why are Inverter PCBs more expensive? Inverter boards in Bengaluru and Pune contain more complex components (like IGBTs) to manage variable motor speeds. They offer better energy savings but have a higher replacement cost compared to standard boards.

Does a voltage stabilizer really protect the PCB? Absolutely. In India, the PCB is the most sensitive part of the appliance. A stabilizer acts as a shield against the high-voltage spikes that are common in many Indian cities.

Where can I buy a replacement PCB in India? It is highly recommended to purchase through authorized service centers to ensure you get a genuine board with the correct software version. You can also find spares in major markets like Lohar Chawl (Mumbai) or through reputable online parts retailers.
