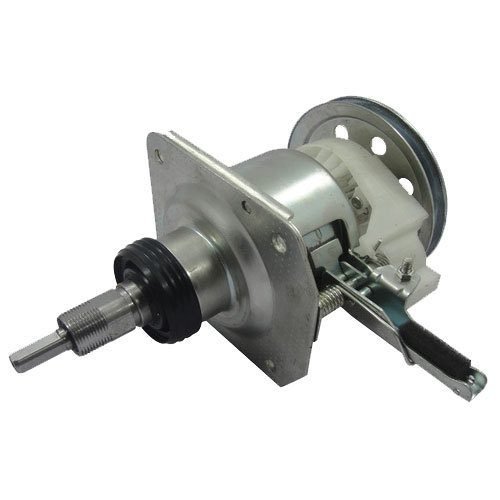

Washing Machine Speed Reducer

The Torque Master: A Comprehensive Guide to Washing Machine Speed Reducers in India

In the mechanical architecture of a semi-automatic washing machine in India, the Washing Machine Speed Reducer (often referred to as the Gearbox) is the silent powerhouse. While the motor provides the high-speed rotation, it is the speed reducer that transforms that velocity into the high-torque, slow-speed agitation required to scrub clothes. From the monsoon-soaked mud on denims in Mumbai to the dust-laden linens of Delhi, the speed reducer ensures that the pulsator has enough power to move heavy loads without stalling the motor. In the India market, where durability is the top priority for households in Bengaluru and Chennai, understanding this component is key to maintaining your appliance. We also deal in other home appliance spare parts like Chimneys, Hobs, RO systems, ACs, Fridges, Washing Machines, Microwaves, Dishwashers, Geysers, Coolers etc.

The Engineering Logic of Speed Reduction

The primary function of a speed reducer is to reduce the high RPM (Rotations Per Minute) of the wash motor—typically around 1400 RPM—to a much lower speed of approximately 100 to 150 RPM for the pulsator. This process is essential because high-speed spinning is great for drying, but it would tear delicate fabrics like silk sarees in Kolkata or Hyderabad if used for washing. By using a series of planetary or spur gears, the speed reducer multiplies the torque, allowing the pulsator to rotate back and forth even when the tub is packed with heavy winter wear in Chandigarh or Noida.

Key Technical Specifications for the Indian Market

To withstand the heavy wash loads and the often-hard water conditions of India, speed reducers from brands like LG, Samsung, Whirlpool, and Videocon follow these technical parameters:

• Gear Ratio: Typically ranges from 1:5 to 1:10, depending on the motor power and drum capacity (e.g., 6.5 kg to 9 kg).

• Shaft Specification:

  • Spline Shaft: Features multiple teeth (e.g., 10-spline or 11-spline) to lock into the pulsator.

  • Square/Flat Shaft: Found in older models in Mumbai and Delhi.

• Housing Material: High-impact, reinforced plastic or cast aluminum to prevent rust in the humid kitchens of Chennai and Kochi.

• Bearing Type: Sealed ball bearings or high-grade bushes to ensure smooth, noiseless operation in Bengaluru apartments.

• Input/Output Shaft Length: Model-specific lengths (measured in mm) to ensure perfect alignment with the belt pulley and the pulsator in Pune or Noida.

Types of Washing Machine Speed Reducers Found in India

1. Planetary Gearbox

The most advanced and compact type found in modern top-load and semi-automatic machines in India. It uses multiple "planet" gears revolving around a "sun" gear, providing exceptional torque distribution and a longer lifespan for households in Gurugram or Hyderabad.

2. Spur Gear Reducers

Common in budget-friendly semi-automatic models across India. They use simpler, straight-cut gears. While easier to repair in cities like Mumbai or Ahmedabad, they can be slightly noisier than planetary versions.

3. Single-Shaft vs. Dual-Shaft Reducers

Standard semi-automatic machines in Delhi use a single-shaft gearbox for the wash tub. However, some specialized industrial-grade washers in Bengaluru feature dual-shaft systems for simultaneous multi-directional agitation.

4. Plastic-Body vs. Metal-Body Gearboxes

Plastic-body reducers are rust-proof and ideal for the coastal humidity of Mumbai and Chennai, whereas metal-body reducers are often preferred in North India for their sheer ruggedness in handling heavy-duty laundry.

Maintenance and Troubleshooting in Indian Conditions

In India, the biggest enemy of the speed reducer is Water Leakage from the wash tub. In cities like Delhi, Noida, or Mumbai, if the "Oil Seal" or "Bellow" of the wash tub fails, soapy water drips directly into the gearbox. This washes away the internal grease, leading to rusted gears and a loud "grinding" noise.

Pro-Tip: If you hear a screeching sound or if the pulsator stops moving while the motor is still humming in your Bengaluru or Chennai home, your speed reducer has likely failed. In India, these are usually "sealed units," meaning they cannot be easily greased; a full replacement is the most reliable solution. Always ensure you don't overload the machine, as excessive weight puts immense pressure on the gear teeth, causing them to "strip" or break in your Noida or Kolkata kitchen.

Frequently Asked Questions (FAQ)

Why is my washing machine making a loud grinding noise during the wash? In many India homes, this indicates that the internal gears of the speed reducer are worn out or that water has entered the gearbox. This is a common failure point in Delhi and Mumbai due to aging tub seals.

Can I replace the gearbox of my LG machine with a Samsung one? No. Speed reducers in India are model-specific. The shaft length, number of splines (10, 11, or 12), and the mounting screw holes must match your specific model in Bengaluru or Pune.

How do I know if the shaft is a spline or a square type? You will need to remove the pulsator (the rotating disc at the bottom) in your Mumbai or Noida home. The tip of the gearbox shaft will be visible—either it will have teeth (spline) or a flat/square shape.

Does a faulty speed reducer affect the motor? Yes. If the gearbox is jammed, the motor will struggle to turn and may eventually burn out due to overheating in your Delhi or Chennai home. Replacing the speed reducer early saves the motor.

Where can I buy a replacement speed reducer in India? They are available at authorized service centers or in appliance spare parts hubs like Lamington Road in Mumbai, Chandni Chowk in Delhi, or through reputable online retailers.
